| Product Model ： | ZCT230L-SCT-AH-E5-37 |
| Measuring Range ： | ±30 ° |
| Output ： | CAN |
| Power： | Voltage(8～30V) |
| Measuring Axis ： | Dual Axis |
| Accuracy ： | 0.01°-0.09° |
| Resolution ： | 0.01° |
| Application ： | Machinery |
| IP Degree ： | IP67 |
| Temperature ： | -40℃ ~ +85℃ |
| Alarm Angle： | X-axis Y-axis Custom |
ZCT230L-SCT-AH-E5-37 is a two-axis tilt sensor R&D and manufactured by Shanghai zhichuan electronic technology CO., LTD，the max measure range ±30°，CAN output. It can be widely used in the field of engineering machinery.
Product Features
All use industrial components\Stable performance\Reliable;
Superior impact and vibration resistance;
With reverse polarity protection function\use the aluminum alloy housing
Product Applications
- Construction Machinery;
- Construction vehicle;
- Mining machinery;
- Security control, monitoring, Alarm;
Technical Data Sheet
1.working parameter
| Parameter | Condition | Min | Typ | Max | Unit |
| Power Supply | 8 | 12 | 40 | V（DC） | |
| Quiescent current | Vcc=12V | 24 | 29 | 34 | mA |
| Work temperature
range |
-40 | 85 | ℃ | ||
| Storage
Temperature Range |
-40 | 85 | ℃ |
2. Performance index（Unless otherwise noted, all of the following are for room temperature (25 ℃) under the environment of typical values.）
| Item | Test Condition | Min | Typ | Max | Unit |
| Test Range | Dual Axis | -30 | +30 | ° | |
| Resolution(1 | 25℃ | 0.01 | ° | ||
| repeatability(2 | 25℃ | 0.25 | ° | ||
| accuracy(3 | Measure range<
<±8° |
±0.25 | ° | ||
| Measure range<
<±15° |
±0.5 | ° | |||
| Measure range<
<±30° |
±0.8 | ° | |||
| Output frequency | 1 | 25 | 100 | HZ | |
| CAN Baud rate | 250 | kbps | |||
| Temperature effect on zero | -40—+85℃ | 0.008 | 0.01 | °/℃ | |
| Zero-point | with housing | 0.5 | ° |
Note 1：Resolution refers to the minimum input Angle that a device can resolve，at the condition of default filter level=15 ;
Note 2：At the condition of default filter level=15;
Note 3：At the condition of default filter level=15;

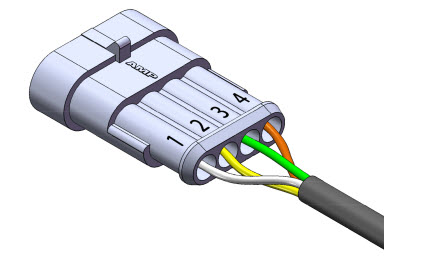

Wiring definition
| 1 | 2 | 3 | 4 |
| White | Yellow | Green | Brown |
| VCC | GND | CAN-H | CAN-L |
Product size and measurement direction: Unit：mm

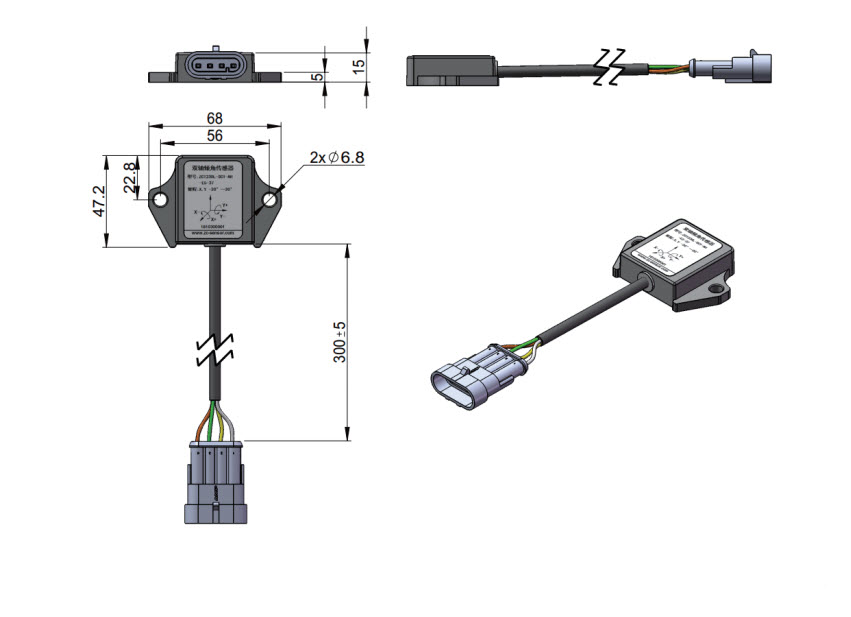

1. Product size

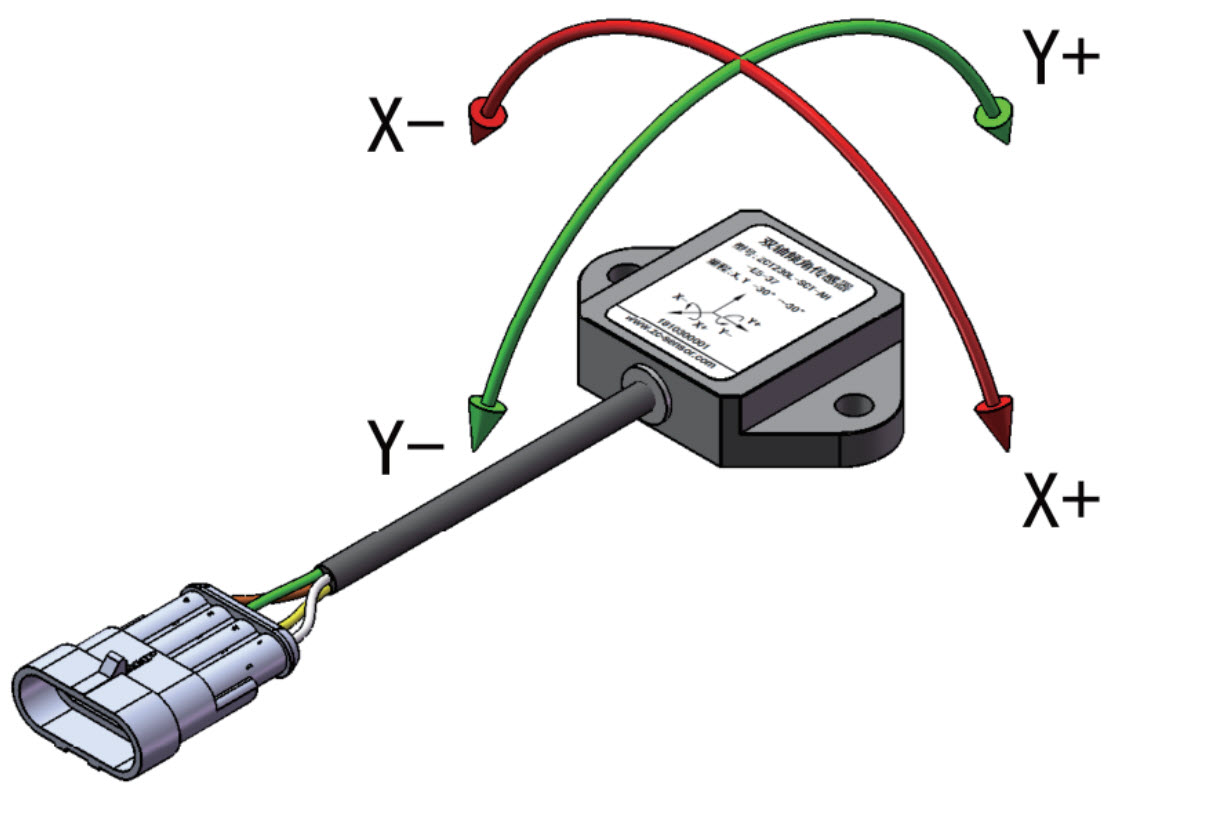

2. Measurement direction
Ordering instruction：Default cable length
(Includes connectors and retainers)：400±50mm
This information is for reference only，Shanghai zhichuan electronic technology co., LTD. Has the right to revise the data without notice.
