ZCT-IPI-W1 Datalogger for In-place Inclinometers User’s Manual
| Product Model ： | ZCT-IPI-W1 |
| Output ： | Wireless |
| Power： | Voltage(8～30V) |
GET A PRICE
Description：

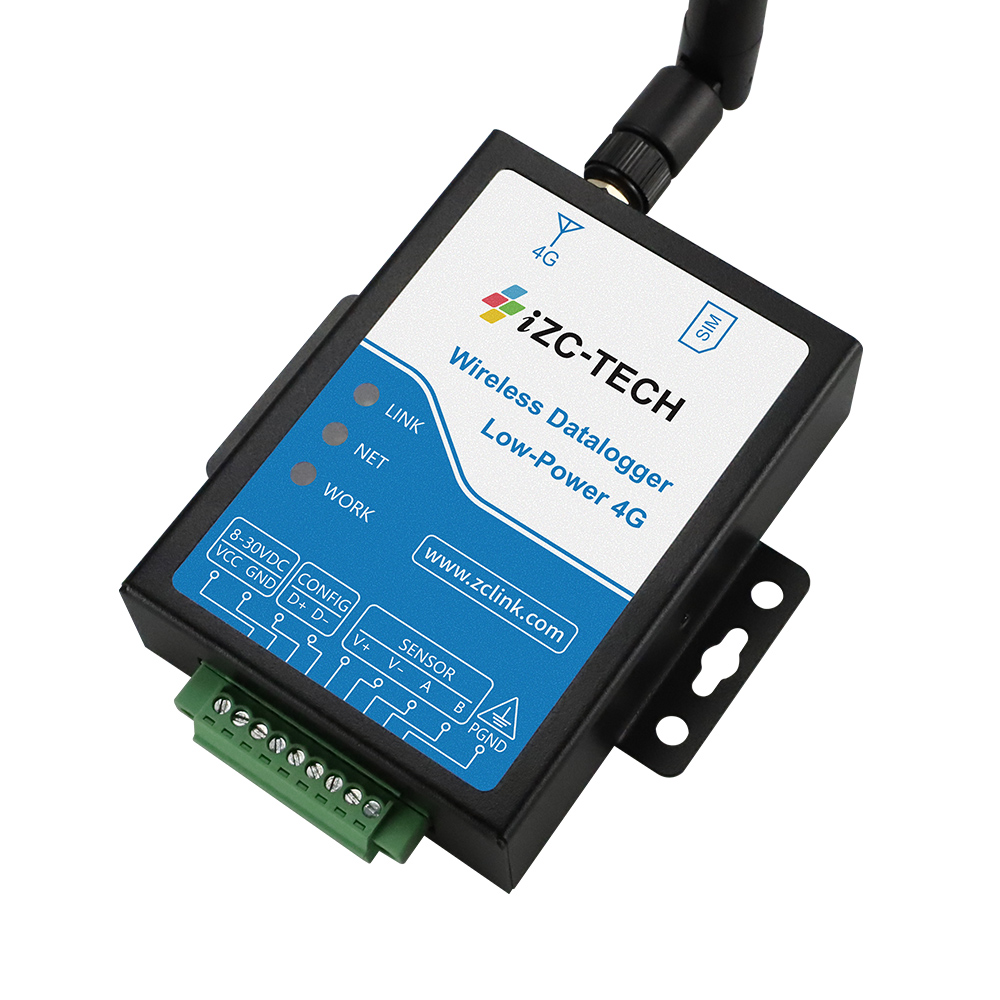

Developed by Zhichuan Technology (Shanghai) Co., Ltd., ZCT-IPI-W1 is a highly flexible datalogger that collects readings from ZCT-CX200B / ZCT-CX300B in-place inclinometers (IPI’s). Data from up to 64 probes on a single string are collected automatically at a pre-set interval and are immediately uploaded to user’s FTP server via 4G cellular network. The datalogger can be locally set up via serial communication, or it can be remotely configured and reboot via the FTP server. The firmware of the datalogger can be locally or remotely upgraded as well.
Technical Parameters：
- Electrical parameters
| Parameters | Conditions | Min | Typical | Max | Unit |
| Power supply | DC | 8 | 12 | 30 | V |
| Operating current | Working mode,
without probe, @ 12VDC |
60 | 2000 | mA | |
| Sleep mode,
@ 12VDC |
15 | 20 | mA |
- Performance parameters
| Parameters | Min | Typical | Max | Unit |
| Number of IPI probes | 0 | 64 | / | |
| Collecting interval | 1 | 10,080 | minute | |
| Local memory capacity | 60,000 | piece | ||
| RS485 communication rate | 2,400 | 9,600 | 19,200 | bps |
| 4G network | LTE CAT1 | / | ||
| Collection response time | 200 | 1,000 | ms | |
| Power-on startup time | 5 | 10 | s | |
| Operating temperature | -20 | +60 | ℃ | |
| Storage temperature | -40 | +80 | ℃ | |
| Dimensions | 129.1*92*127.2 | mm |
